Commercial Polycarbonate Greenhouse
video
Commercial Polycarbonate Greenhouse

Commercial Polycarbonate Greenhouse

PC sheet greenhouse specially used in the big wind and rain area. PC sheet has transparency high, and quality light, and anti-impact, and noise, and insulation, and difficult burning, and anti-aging, features, is a hi-tech, and integrated can extremely excellence, and energy-saving environmental type plastic plate.
Send Inquiry
Product Introduction

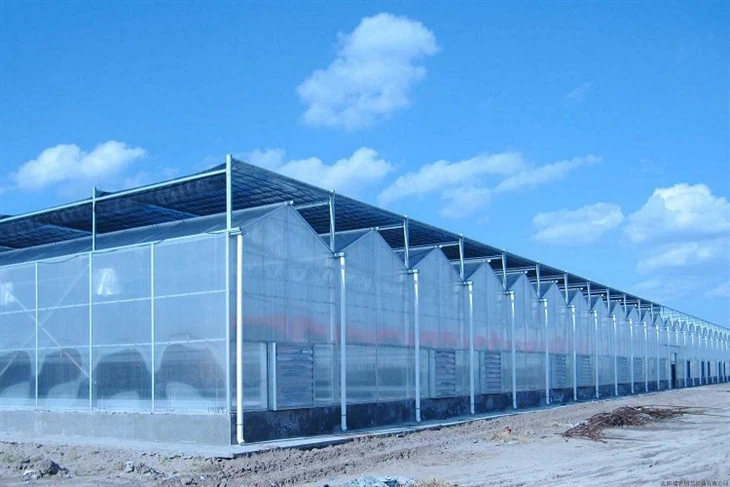

Commercial Polycarbonate Greenhouse




12m flower multi span polycarbonate greenhouse skeleton commercial greenhouse structures



Product Description



PC sheet greenhouse specially used in the big wind and rain area. PC sheet has transparency high, and quality light, and anti-impact, and noise, and insulation, and difficult burning, and anti-aging, features, is a hi-tech, and integrated can extremely excellence, and energy-saving environmental type plastic plate.

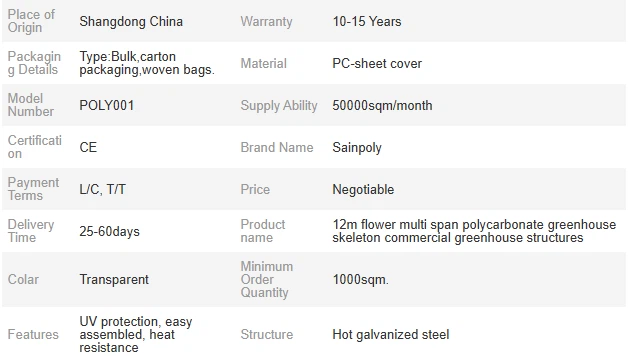

Specification



Item Name

12m flower multi span polycarbonate greenhouse skeleton commercial greenhouse structures

Frame

Hot Galvanized Steel Pipe

Covering material

PC sheet cover

Length

30-60m or customized

Span width

9.6m, 10.8m, 12m or customized

Roof height

3.5m or customized

Wind load

0.6KN/m²

Snow load

0.5KN/m²



Details Images



Advantage of polycarbonate greenhouses.
(1) Transparency: The transmittance of the PC plate is up to 89%. UV-coated panels do not produce yellowing when exposed to sunlight.
(2) Impact resistance: Impact strength is 250-300 times that of ordinary glass.
(3) UV protection: PC board is coated with anti-ultraviolet (UV) coating on one side and anti-condensation treatment on the other side.
(4) Light weight: The proportion is only half of the glass, which saves the cost of transportation, unloading, installation, and support frames.
(5) Energy-saving: Keep cool in summer and keep warm in winter. The insulation of PC board is up to 49%.
(6) Temperature adaptability: PC board does not have cold brittleness at -100°C, does not soften at 135°C.



Greenhouse System

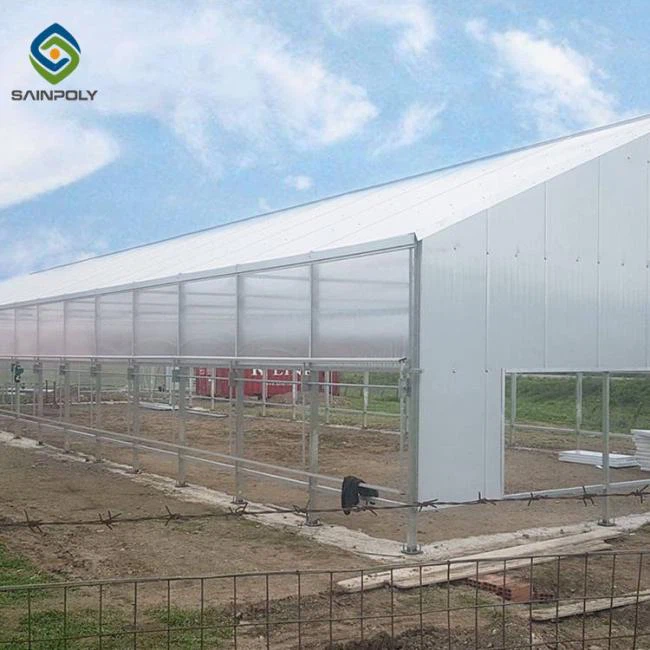

PC Sheet Cover
Product Thickness :6/8/10mm
Material: polycarbonate
Warranty: usually 10-15 year's quality guarantee
Product Size Length: customized according to the requariment of customer

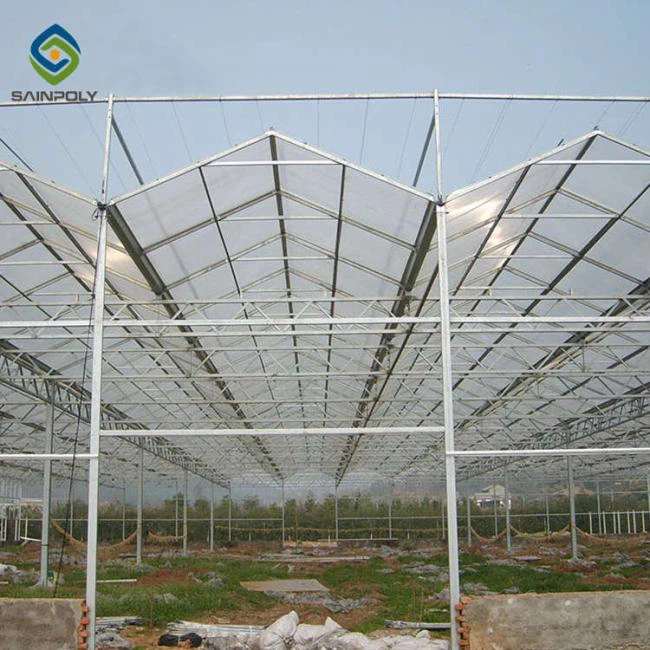

Frame Material
1. The steel material meets the "GB700-88carbon steel";
2. Double side hot galvanized layer which will be not less than 200um.
3. The warranty period of standard skeleton is 15 years, but the actual service life will be more than 20 years


Outside shading system
Material: Black round-wire sunshade net
Advantage: Button control switch , reduce the internal temperature and avoid damages to plants caused by intense sunlight.
Inside shading system
Material: Aluminum sunshade net Advantage: Button control switch, reduce the internal temperature by cutting off excess solar radiatio


Cooling Fan
Introduction: The pads and fans are used together to realize the functions of cooling and ventilation.
Size: Exhaust Hammer Fans in
1380+1380*400 mm with wind volume 44000 m3/h.


Cooling Pad
Introduction: The pads and fans are used together to realize the functions of cooling and ventilation.
Size: Aluminum frame, height is 1.5 m with thickness 150 mm.

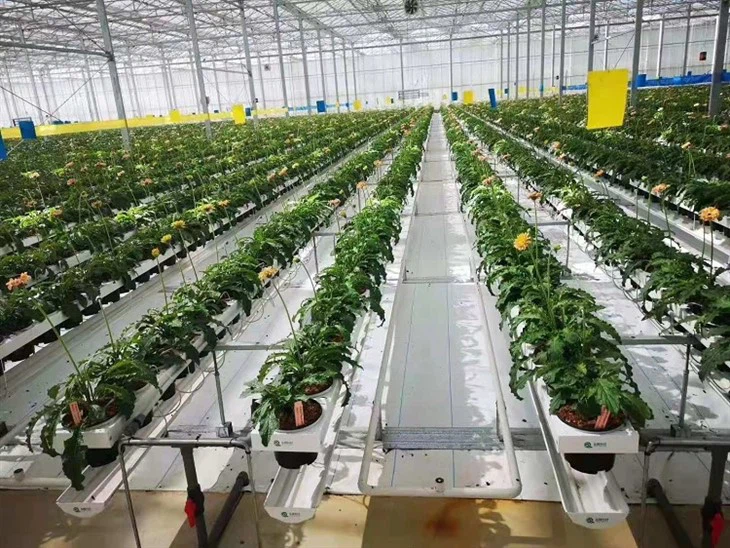

Hydroponic System
The hydroponic system refers to when the plant is in the seed propagation period, the basic material is not the cultivation method of natural soil, but the fixed irrigation with nutrient solution to prevent diseases caused by frequent use of soil and physiological obstacles caused by salt accumulation
Meet the needs of plants for minerals, water, air and other conditions.
The base material can be recycled. Hydroponics has the characteristics of water saving, fertilizer saving, laboratory, etc. or saving, as well as big harvest and superior quality

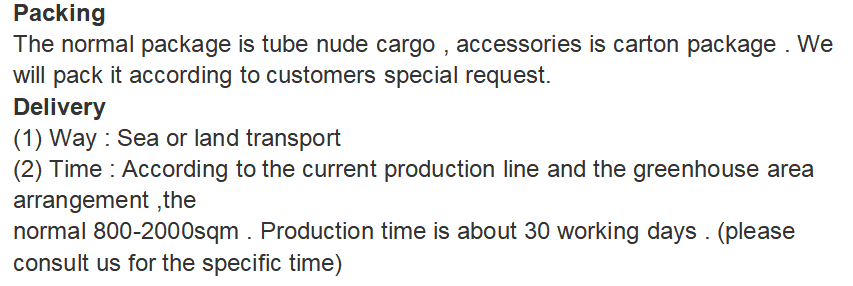

Packing & Delivery






FAQ



Q: Are you a trading company or a manufacturer?

A: We are a factory. Our factory produces all items related to the greenhouse, so we provide the best price

Q: How long is your delivery time?

A: 1000-5000 square meters, 25-40 days, if you encounter a special period, please contact the salesperson for details

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples for free, but not pay for shipping.

Q: How to get a quotation for the greenhouse?

A: Please let us know how many greenhouses are needed? What will be grown in the greenhouse? So that we can suggest related systems

Q: How should I choose a greenhouse system?

A: Please let us know where the greenhouse is (temperature, wind speed)

Q: How to assemble the greenhouse when purchasing?

A: We have professional after-sales service engineers who will provide planning drawings and installation manuals. You can communicate with him from time to time.
If necessary, we can also send engineers to your country to supervise the installation of the greenhouse. Please send a message for specific details.



Our Factory



Weifang Sainpoly Greenhouse Equipment Co., Ltd. We are majoring on the greenhouse materials manufacture, sales and technical services. We are engaging in the advanced greenhouse projects and designing. We are also a professional greenhouse supplier in providing all kinds of systems and their materials. More and more companies have built up cooperation with our company based on the advantages of the quality and price of our products. The quality policy of our company is "Superiority and Sincerity". Our operation principle is "Continuous Creation of Value for Our Clients". We are now applying professional technology and considerateservice to make great partners, cooperating with all of you. Welcome to our company!






We have CE, IOS and other certificates. It is your trustworthy supplier.



Shipment



Support wooden case packing LCL shipment. Mainly do full container shipment
