Name: Shade Greenhouse
Brand: SAINPOLY
SKU: 241005742

Products Profile
Shade Greenhouse: It is normally used in tropic zone or sub tropic zone or the area with low requirement of planting environment. It also used as a temporary facility. It is built by steel frame structure and fixed or movable shading curtain on top.

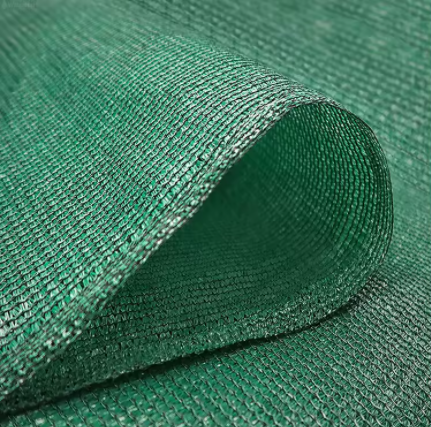

Shading Net: Easily Assembled, Easily Cleaned, PORTABLE, Heavy Duty, Waterproof, Folding, Anti-UV, Sustainable, Windproof

Cover Material	HDPE
Type	Agricultural shade net
Color	White, Green, and so on
Weight	40grams ~ 80grams
Width	1m ~12m
Length	50m~150m
Shade Rate	30%
Service Life	1 ~ 3 years / 3 ~ 5 years

Outside shading system

This system includes control box and motor, transmission part, switch, curtain line, gable wall beam and curtain cloth.
1) Control box: The box is equipped with two sets of contact devices for opening and closing the curtain
2) Transmission parts: It is composed of gear motor connection parts. Through the transmission shaft connected to the geared motor, the power is output. The "Sainpoly" brand A-type rack and pinion is used, and the transmission shaft, drive rod, connectors, and etc.
3) The motor is equipped with a travel limit device, stop automatically and limit accurately.

4) Curtain and gable wall brackets: A set of outside shading frames are installed on the top of the greenhouse. The bracket part has a reliable strength, beautiful appearance, strong load bearing capacity and long service life. Curtain: Taking into account the characteristics of heavy sunshine and long duration in the UAE, 85% shading rate high-quality round wire outside shading nets are used. The warranty period is 5 years, and the normal use is more than 8 years.
5) Make the greenhouse temperature drop at least 5 ℃.

Table 1 Specification and Constituent of outside shading system

NO.	Name	Function	Specification	Note
1	Gear Motor	Placed in the center of each system and near the columns	SBL-WJ80-5.2	Sainpoly
2	Chain	Using for gear motor and driving shaft
3	Rack and pinion	A Type/L=3965mmT=2.75mm		Sainpoly
4	Push rod	Push the curtain	Ф25
5	Push and Guide pipe connector	Using for push rod connection	Ф25
6	Curtain line	Fixing shading net on greenhouse structure	Ф2.0
7	Aluminum profiles	Driving shaft, Aluminum	Rectangle
8	Shading Net	Round wire shading net	85％

Table 2 Gear motor technical parameters

Type	Torque	Driving method	Turning rate	Power	Voltage	Electric current
SBL-WJ80-5.2	800	Gear	5.2	0.75	380	1.5

Table 3 outside shading net technical parameters

Material	Shading rate	Width	Color	Proportion	Life time (Year)
Cloth	85	4.2	Black	157	More than 8years

Table 4 outside shading system technical parameters

Working speed	0.36
One way working time	10.8

After-Sales Service

☆ Provide professional installation drawings and installation videos, dedicated to solving customer installation problems
☆ Technician guides the installation on site (Charge)
☆ Provide remote installation guidance services. Realize through video conference or video real-time guidance. (Charge)
☆ Provide real-time installation video for a single span of the greenhouse of the same specification. (Charge)
☆ Visit customers and provide help for customers' greenhouse operation. Find out the problems in the use of the greenhouse in time.
☆ Remote assistance for unloading and inspection
☆ During the warranty period, damaged greenhouse materials, systems, etc., will be replaced free of charge
After the warranty period, provide customers with cost price to replace greenhouse accessories, systems, etc.
☆ Plantation staff training (Charge)
